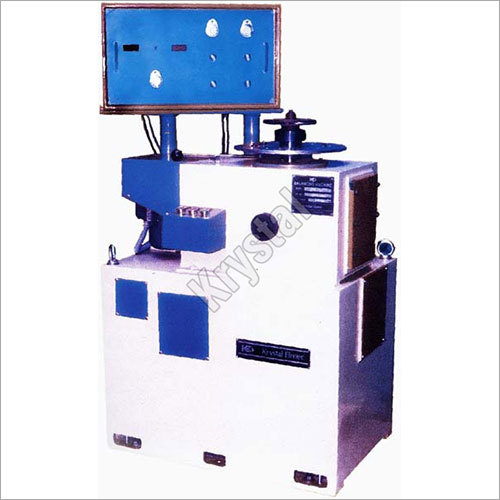

Vertical Balancing Machine
20000.00 INR/Unit
Product Details:
X
Vertical Balancing Machine Price And Quantity
- 20000.00 INR/Unit
- 1 Unit
Vertical Balancing Machine Trade Information
- 1 Unit Per Week
- 1 Week
- As per Requirement
- All India
Product Description
We hold immense expertise in catering to the variegated needs of the customers by providing them with a quality assured Vertical Balancing Machines. This is made up following set standards and norms of the industry using latest technology and tested materials. We procure required materials from some of the well known and certified vendors of the domain. We select them on the basis of their current marker position. As an outcome, we are massively known as customer friendly Manufacturer, Exporter and Supplier.
Construction of Vertical Balancing Machines:
Each standard Machine is of rigid, durable construction reflecting the highest quality of workmanship. All operating elements are arranged considering ergonomic & safety requirements of the operator.
Features:
- Cost effective solutions for rotors without own journals
- User friendly with operator safety
- Solid reliable structure
- State of the art electronic 8 computerized measuring system
Electronic Measuring System
The electronic circuitry used is built in with plug in type cards. All components used are of industry standards and carefully selected for long life and trouble free operation. All measuring systems have built in electronic compensation for compensating the shift of component journal axis from the spindle axis.
Options For Measuring Systems:
- Direct indication of unbalance mass and angle in digital form
- imbalance resolved in components at120o, 90o, 60o, etc.
- Microprocessor controlled system
- Any special requirement to suit the component
Mechanical Attachments:
- Following optional attachments are available to increase productivity
- Drilling attachments
- Pneumatic job clamping
- Riveting
- Any other tooling system as per special requirement
Note : There is no limit for minimum weight on our machines. While, purchasing our Vertical Axis Balancing Machine, one has to see the minimum imbalance measured and check whether it meets accuracy requirements of the smallest job to be balanced.
Specifications:
| Parameter | Units | Models | | | | |
| KHV-10 | KHV-30 | KHV-50 | KHV-100 | KHV-300 | | |
| Maximum weight of Rotor | kg | 10 | 30 | 50 | 100 | 300 |
| maximum diameter of rotor | mm | 400 | 500 | 500 | 600 | 600 |
| Balancing Speed | RPM | 750 | 600 | 500 | 400 | 300 |
| Drive motor power | HP | 0.5 | 1 | 1 | 2 | 5 |
| Acceleration Capacity GD2n2 | kgm2n2 | 0.37x102 | 0.88x102 | 3.0x102 | 3.9x102 | 19.2x102 |
| Minimum unbalance mass read | gm | 0.1 | 0.2 | 0.3 | 0.5 | 0.5 |
| Maximum unbalance read | gm.mm. | 104 | 3 x 104 | 5 x 104 | 105 | 3 x 105 |
| Minimum unbalance Measured | gm.mm | 2.5 | 5 | 7.5 | 10 | 10 |
| Minimum Achievable Residual unbalance (for Max Wt of Rotor) | gm.mm /kg | 5 | 5 | 5 | 5 | 5 |
Note : Due to constant research and development, specification and features are subject to change without notice.
